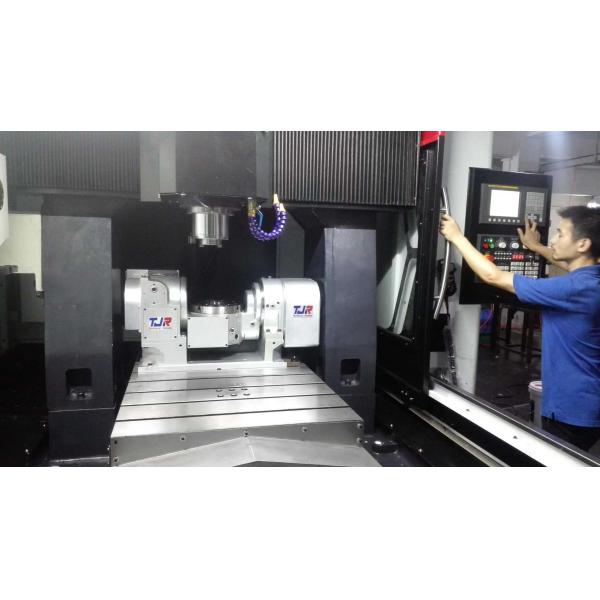

Pneumatic Brake 5 Axis CNC Machine Rotary Table Tjr Tilting Index

Brand Name : Tjr

Model Number : FHR(s)-255CL

Certification : SGS

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C

Supply Ability : 100000 per year

Delivery Time : 15-30 Work Days

Packaging Details : Wooden box

Table Diameter : 255mm

Table T-slot Width : 12H7mm

Guide Block Width : 18h7mm

Repeatability : 6mm

Transmission Mechanism : 0.001mm

Table Height : 290mm

Model NO : FHR(s)Series

Warranty : 1 Year

Contact Now

Pneumatic Brake 5axis Rotary Table CNC Machine Tjr Tilting Index Table Turntable

Product Introduction

High rigidity

Using radial-axial bearings which easily bear heavy cutting

High precision

Usineg Japan made dual-lead worm and worm gear which ia wear-proof and stable.

High value

Adopting large hole diameter desige which not only provide bigger space for work piece setup with fixtures but also deliver high rigidity.

high aesthetic appearnce

using endurable finish,shining with pearlescent and silver

FHR(s)-255CL Five-axis machining centers can also reduce benchmark conversion and improve machining accuracy. In actual machining, only one clamping is required, making it easier to ensure machining accuracy. At the same time, due to the shortening of the process chain and the reduction in the number of equipment, the number of fixtures, workshop area, and equipment maintenance costs of the five-axis machining center have also decreased. This means that you can use fewer fixtures, less plant area, and maintenance costs to achieve more efficient and high-quality processing!

Product parameters

Item		Unit	FHR(s)-255C /255CL
Table Diameter		mm	Ø 255
Diameter of center hole on disk surface		mm	Ø 110
Inner Diameter of Mandrel Sleeve		mm	Ø 80H7
Diameter of Center Through Hole		mm	Ø 80
Table Height (Horizontal)		mm	290
Table T-slot Width		mm	12H7
Guide Block Width		mm	18h7
Axis		-	Rotary axis	Tilt axis±110º
Transmission Mechanism		deg.	0.001	0.001
segmentation precision		sec.	15	60 *¹
Repeatability		sec.	6	8
Clamping System		kg/cm2	35	35
Clamping Torque		kg-m	70	140
Servo Motor Model	FANUC	Axis taper/Straight axis	αiF4 / αiF8 / αiS12 / ßiS8(Type)	αiF8 / αiS12 / ßiS12(Type)
	Mitsubishi	Straight axis	HG/HF-104	HG/HF-154
Speed Reduction Ratio		-	0.125	0.125
Max. Rotation Rate of Table (Calculate with FANUC α Motor)		r.p.m	33.3 * (25)	16.6 * (11.1)
Allowable Inertia Load Capacity (Horizontal)		kg.cm.sec2	8.13
Allowable Workpiece Load (dynamic)	0º Horizontal	kg	100
	0º~90º Tilt	kg	75
Allowable Load (with clamping)	F	kgf	1500
	FxL	kgf.m	140
	FxL	kgf.m	70
(Rotary axis)Strength of Roller Gear Cam		kg.m	55 *(31)
Net Weight (servo motor excluded)		kg	296(Ø255C) / 312(Ø255CL)

Detail drawing

Pneumatic Brake 5 Axis CNC Machine Rotary Table Tjr Tilting Index
